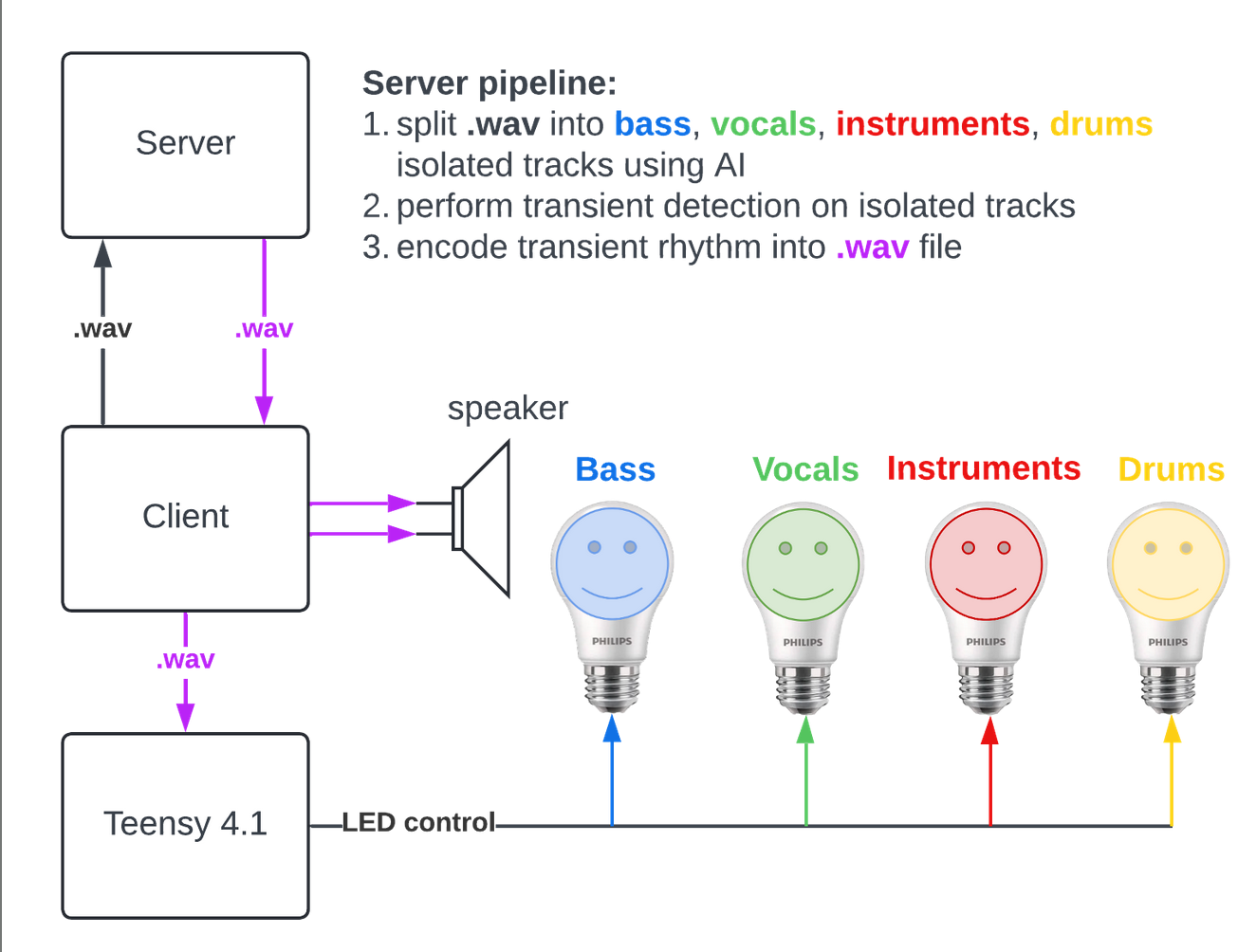

I built a system that syncs LEDs to music in real-time which using the following steps:

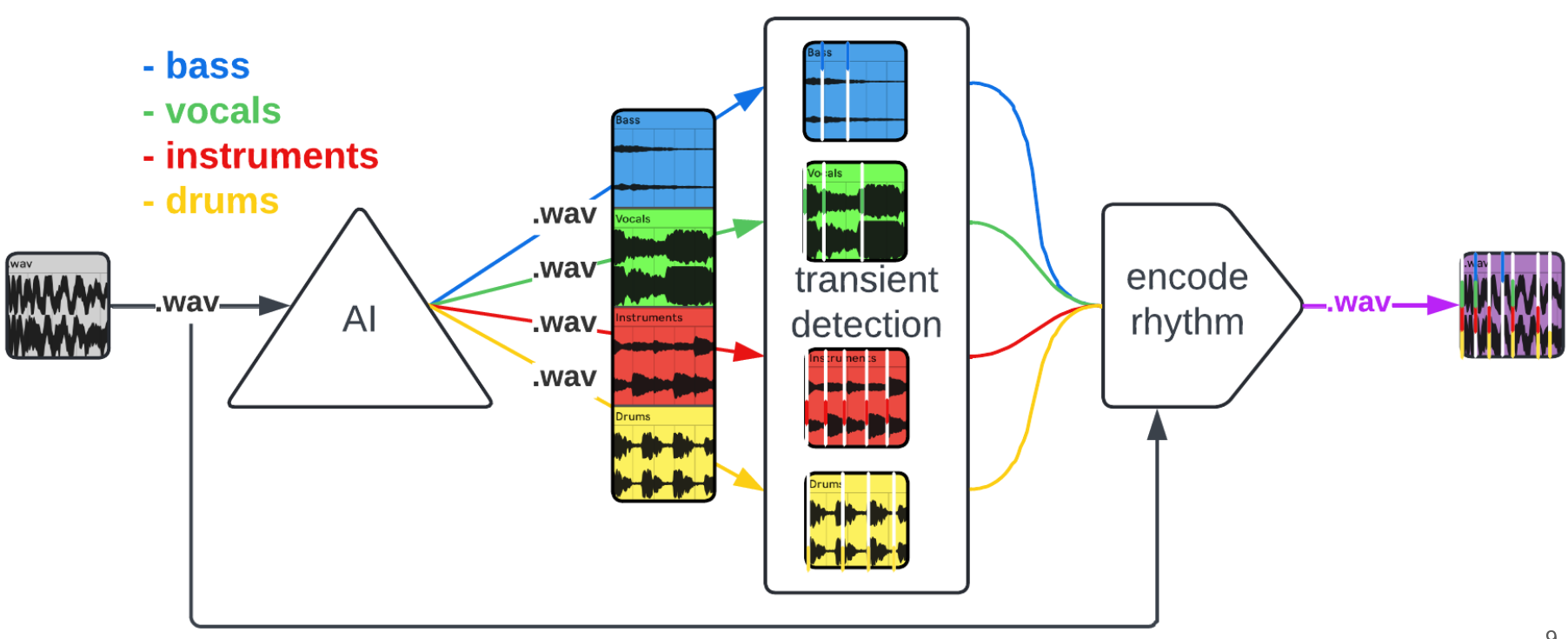

  1. Split the audio using AI to get isolated tracks.

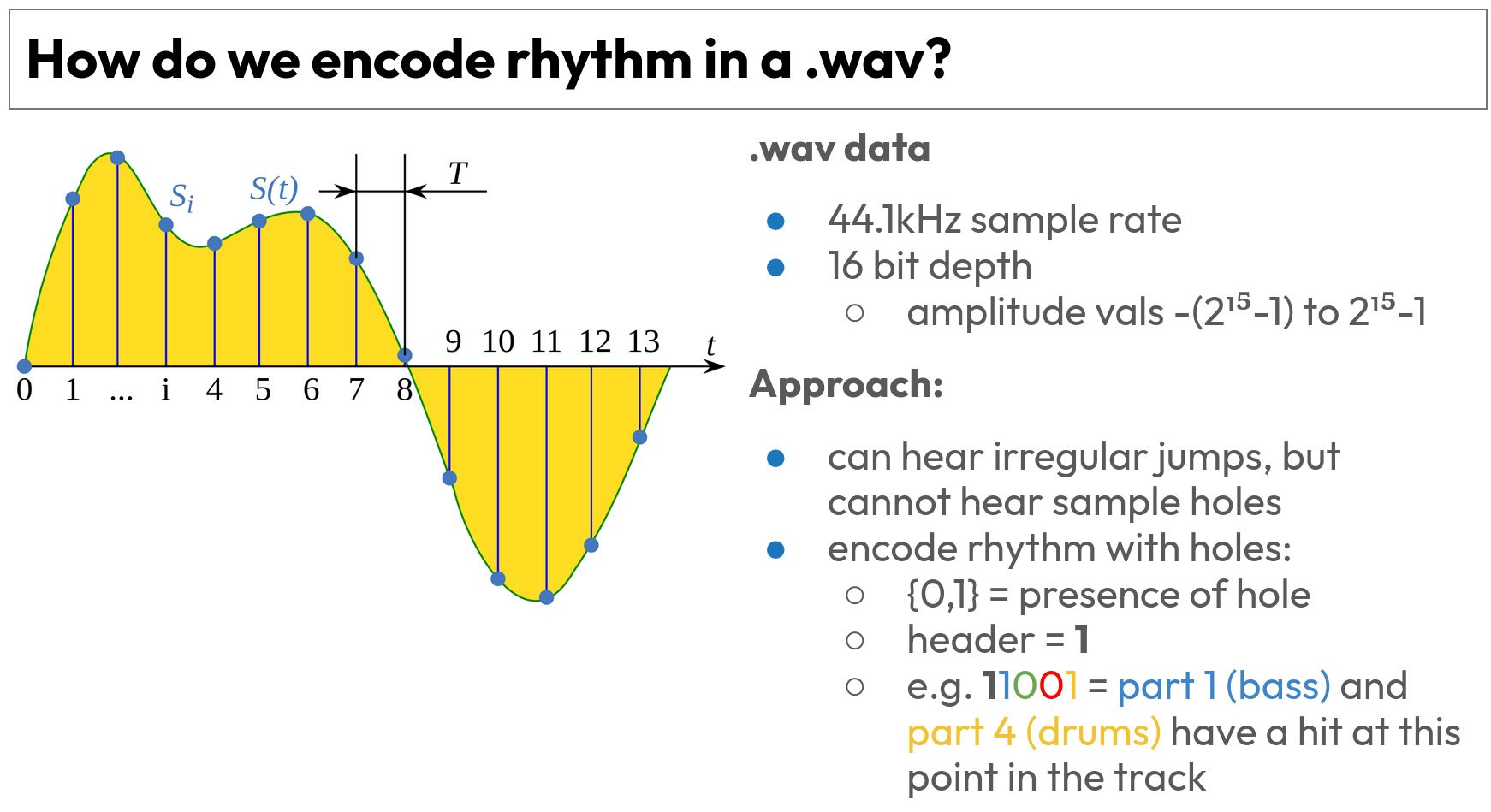

  2. Map each track's transients to rhythm data.
  3. Stream the rhythm data to a microcontroller, e.g. Teensy 4.1, and perform an on-the-fly algorithm to flash LEDs with each track.

I built this with a couple friends while at Boston University for fraternity purposes. If I were to roll out a V2, I'd have the AI process the audio online rather than apriori, with appropriate buffer to match the frequency of the control loop.

mr_light_circuit.png mr_light_2.png mr_light_1.png
